รายละเอียดสินค้า:
|
| ความดันพิสูจน์: | 15บาร์ | ช่วงความเร็วในการใช้งาน: | 50-700 มม./วินาที |
|---|---|---|---|
| แรงดันใช้งาน: | 1 ~ 10 บาร์ | อุณหภูมิในการทำงาน: | -25~80℃ |
| การหล่อลื่น: | ไม่จำเป็น | วัสดุ: | อลูมิเนียม |
| เน้น: | 1-10 bar Pneumatic Solenoid Valve,15 bar Solenoid Valve,50-700mm/s Air Control Valve |
||
I.Features:

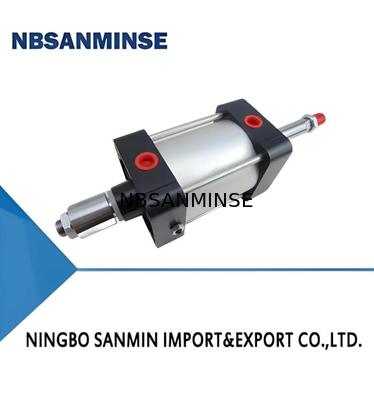

This product is developed based on the QGEW-2 series double piston rod cylinder. It is composed by extending the thread length at the piston rod end and installing an adjusting screw sleeve. Adjusting the stroke-adjusting screw sleeve can effectively adjust the extension stroke of the cylinder
II.Model:
SD:
| Installation Form Name | Code | Installation Form Name | Code |
| Horizontal Foot Bracket Type | LA | Front Flange Type | FA |
| Axial Foot Bracket Type | LB | Rear Flange Type | FB |
| Intermediate Hinge Type | TC | Intermediate Hinge Seat Type | TCC |
| Basic Type | SD |
RY-T:
| Instllation Form Name | Code |
| Rad End Rod Fork Type | RT-Y |
| Rod End Fork Rod Type | RY-T |
III. Main Technical Parameters:
| Cylinder Bore Diameter D (mm) | φ32 | φ40 | φ50 | φ63 | φ80 | φ100 | φ125 | φ160 | φ200 |
| Maximum Stroke S (mm) | 500 | 800 | 1600 | ||||||
| Operating Pressure Range | 1~10 bar | ||||||||
| Proof Pressure | 15 bar | ||||||||
| Operating Speed Range | 50-700mm/s | ||||||||
| Operating Temperature Range | -25-+80℃ (under non-freezing conditions) | ||||||||
| Working Medium | Purified compressed air | ||||||||
| Lubrication | Not required (Lubrication optional) | ||||||||
| Cushion | Adjustable cushion on both sides | ||||||||
| Cushion Stroke (mm) | 25 | 25 | 28 | ||||||
IV. Graphical Symbols, Outline and Installation Dimensions
Standard Type
SD (Basic Type)
Dimension Table:
