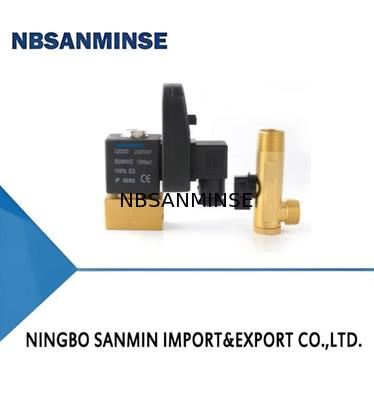

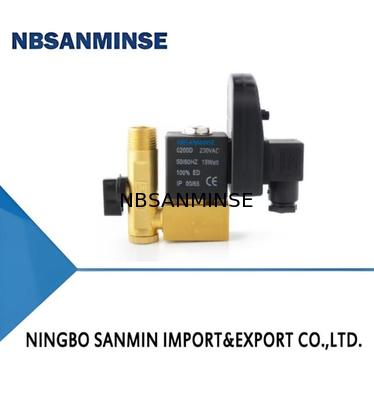

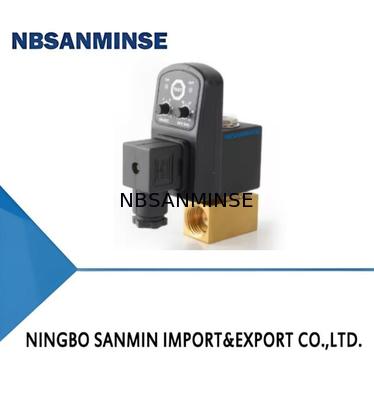

NBSANMINSE SR - A - 15 Electronic Drainer G1 / 2 1.6Mpa Exhaust Valve Water Drainer Water Valve DC24V AC220V High Quality

Product sellpoints

Durable Brass Construction:Crafted from high-quality brass for long-lasting performance and resistance to corrosion.

Easy Maintenance:Easy to install with optional bypass pipe for effortless maintenance and upkeep.

High Pressure Compatibility:Designed for 1.6Mpa working pressure, compatible with high-pressure compressed air systems.

Automatic Drain Control:Adjustable discharge time (0.5-10 sec) and interval time (0.5-45 min) for customized water removal.

Sanmin Drain Valve|Sanmin Drain Valve Manual|IP65 Waterproof Rating:IP65-rated, ensuring reliable performance in wet environments, ideal for compressed air systems.

Ex : ON :1Bar OFF:2Bar  =NC

      ON :2Bar  OFF:1Bar  =NO

      ON :-0.9Bar OFF:-0.65Bar  =NO

      ON :-0.65Bar OFF:-0.9Bar =NC

Use :
Universeal electronic drain valve in analog circuit solid match the solenoid valve ,electronic timer implementation to the timing of condensed water from compressed air systemuto emissions . Drying machine is sidely used in filter separator gasholder dripping feet , compressed air system components , discharge time and interval time can be adjusted according to different needs .
Characteristic :
Easy installation Automatic
Time interval and discharge time can be adjusted with the test button
Orifice size : 3mm pressure : 16 bar
Heat resistance level : H calss IP65
Filter configuration ball valves , import and export into 90
Reliability :
Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .
Applicability :
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid
valve , general solenoid valve is better claim to medium cleanness
3 . Pay attention to the environmental temperature on the influence of solenoid valve .
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions
permit , please install bypass pipe , easy maintenance ; When there is water drain to customize
solenoid valve opening and closing time regulation .
Security :
General solenoid valve is not waterproof , when needs waterproof model , we can be customized
Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .

Material: Buffing BrassnBody: Solenoid Automatic DrainernPort Size: G 1/2nDischarge time (ON): 0.5 ~ 10 secnTemperature of Media: OthernPressure: 1.6Mpannn|Air Compressor Drain Valve Solenoid|Air Compressor Drain Solenoid|nn**Robust Design and Performance**nThe SR-D-15 G1/2 Auto Drain Air Compressor Brass Vent Device Valve is a robust and reliable piece of equipment designed to manage condensed water from compressed air systems. Crafted from high-quality buffing brass, this valve is built to withstand the rigors of industrial environments. The solenoid-controlled mechanism ensures precise and efficient draining, with a discharge time ranging from 0.5 to 10 seconds, making it suitable for various applications.nn**Versatile and User-Friendly**nThis air compressor drain valve is not just any ordinary valve; it's an intelligent solution for managing water in compressed air systems. With an interval time adjustable from 0.5 to 45 minutes and a pressure rating of 1.6Mpa, it caters to a wide range of scenarios. The valve's design allows for easy installation and maintenance, making it a valuable asset for technicians and engineers. Its compatibility with various media types and its ability to withstand high temperatures up to 105℃ make it a versatile component in any compressed air system.nn**Enhanced Durability and Reliability**nThe SR-D-15 G1/2 Auto Drain Air Compressor Brass Vent Device Valve is engineered to provide long-lasting performance. It's designed to handle a wide range of pressures, from low to high, ensuring that it can adapt to various system requirements. The solenoid valve is available in both normally closed and normally open configurations, allowing users to choose the most suitable option based on their specific needs. Whether it's for a filter separator, gasholder, or compressed air system components, this valve is the go-to choice for reliable and efficient water management.
