บ้าน ผลิตภัณฑ์นิวเมติกโซลินอยด์วาล์วSZ Series Standard Suction Cup
SZ Series Standard Suction Cup
SZ Series Standard Suction Cup
ติดต่อตอนนี้

SZ Series Standard Suction Cup

Minimum Order Quantity : 100PCS Packaging Details : Plastic bag
Delivery Time : 5-30days Supply Ability : 10000PCS
Place of Origin: CHINA ชื่อแบรนด์: NBSANMINSE
Model Number: SZC10

ข้อมูลรายละเอียด
Suction cup type: U - Flat Diameter: 2 - φ2mm 16 - φ16mm

รายละเอียดสินค้า

Features
◇ Available in various shapes: U type, C type , B type and D type
◇ Simple structure
◇ Conductive material available
◇ Available in various sizes
Advantages
◇ Small size and light weight
◇ Suitable for workpieces of various sizes and shapes
Applications
◇ U type suitable for workpieces with even surface and without deformation
◇ C type suitable for easily deformed workpieces

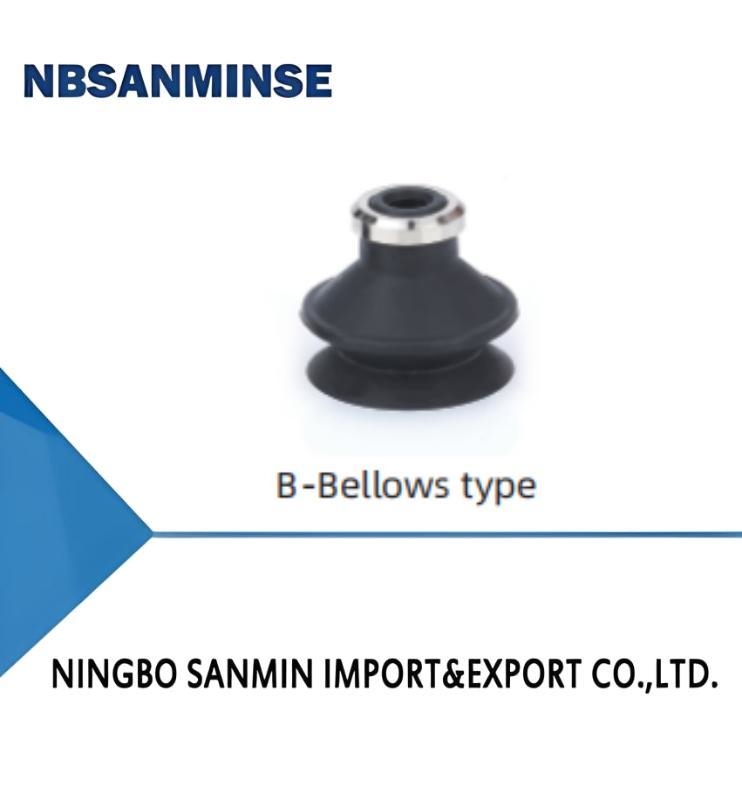

◇ B type suitable for workpieces with inclined surface
◇ D type suitable for spherical objects
◇ Suitable for handling of paper box, small sized semiconductor, spherical
objects and food, ect.
◇ Conductive material suitable for 3C industry
SZ Series Standard Suction Cup 0
Structure
◇ Split structure for easy replacement of wearing parts
SZ Series Standard Suction Cup 1
How to orde
SZ Series Standard Suction Cup 2
◇ Note: HP material is not for all sizes. Please contact AIRBEST if need
Selection
SZ Series Standard Suction Cup 3
Technical parameters
SZ Series Standard Suction Cup 4
◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
The data may be different according to different workpiece surfaces.Recommend the length of vacuum hose to be as short as possible, max 2m.
Dimensions(mm)
SZ Series Standard Suction Cup 5
Dimensions(mm)
SZ Series Standard Suction Cup 6
SZ Series Standard Suction Cup 7
◇ Note: The dimensional tolerance conforms to GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard
Structure
◇ Consisting of replacement suction cup and locking fitting
◇ Plug-in fitting for suction cup
◇ Vertical vacuum port, male and female thread for mounting
◇ Lateral vacuum port, male and female thread for mounting
   In the same series, replacement suction cup and locking fitting can be combined as required
SZ Series Standard Suction Cup 8
How to order
SZ Series Standard Suction Cup 9
◇ Please refer to page 64 for suction cup selection
Selection
SZ Series Standard Suction Cup 10
◇ Note: "●" default, in stock, "-" unavailable
Dimensions(mm)
SZ Series Standard Suction Cup 11
SZ Series Standard Suction Cup 12
Structure
◇ Consisting of replacement suction cup(3) and level compensator
◇ Plug-in fitting for suction cup
◇ Vertical vacuum port(1), male thread for mounting
◇ Lateral vacuum port(2), male thread for mounting
   In the same series, replacement suction cup and locking fitting can be combined as required
SZ Series Standard Suction Cup 13
How to order
SZ Series Standard Suction Cup 14
◇ Please refer to page 64 for suction cup selection
Selection
 SZ Series Standard Suction Cup 15
Dimensions(mm)
SZ Series Standard Suction Cup 16
SZ Series Standard Suction Cup 17
