บ้าน ผลิตภัณฑ์เครื่องส่งสัญญาณความดันดิจิตอลSMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE

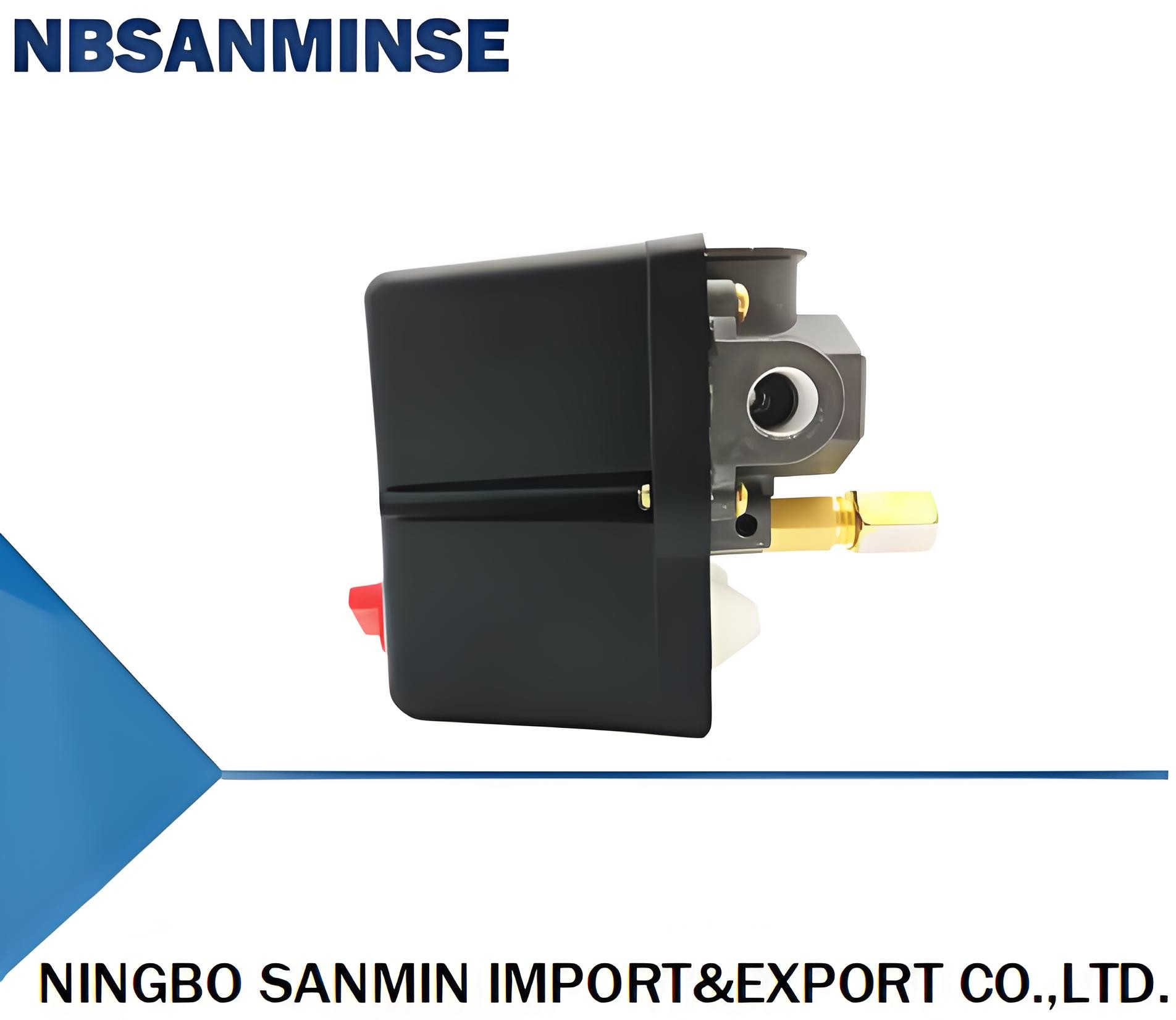

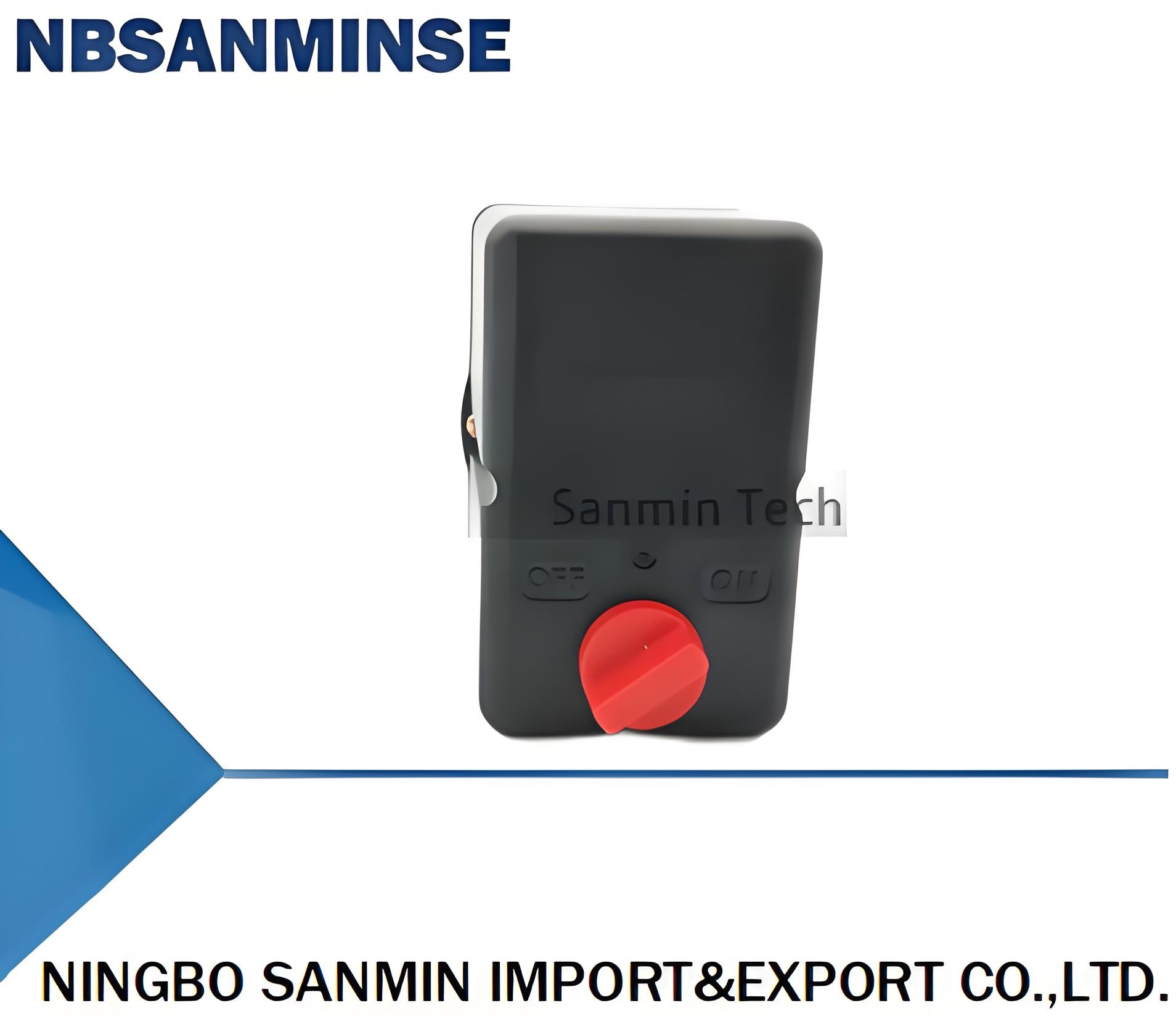

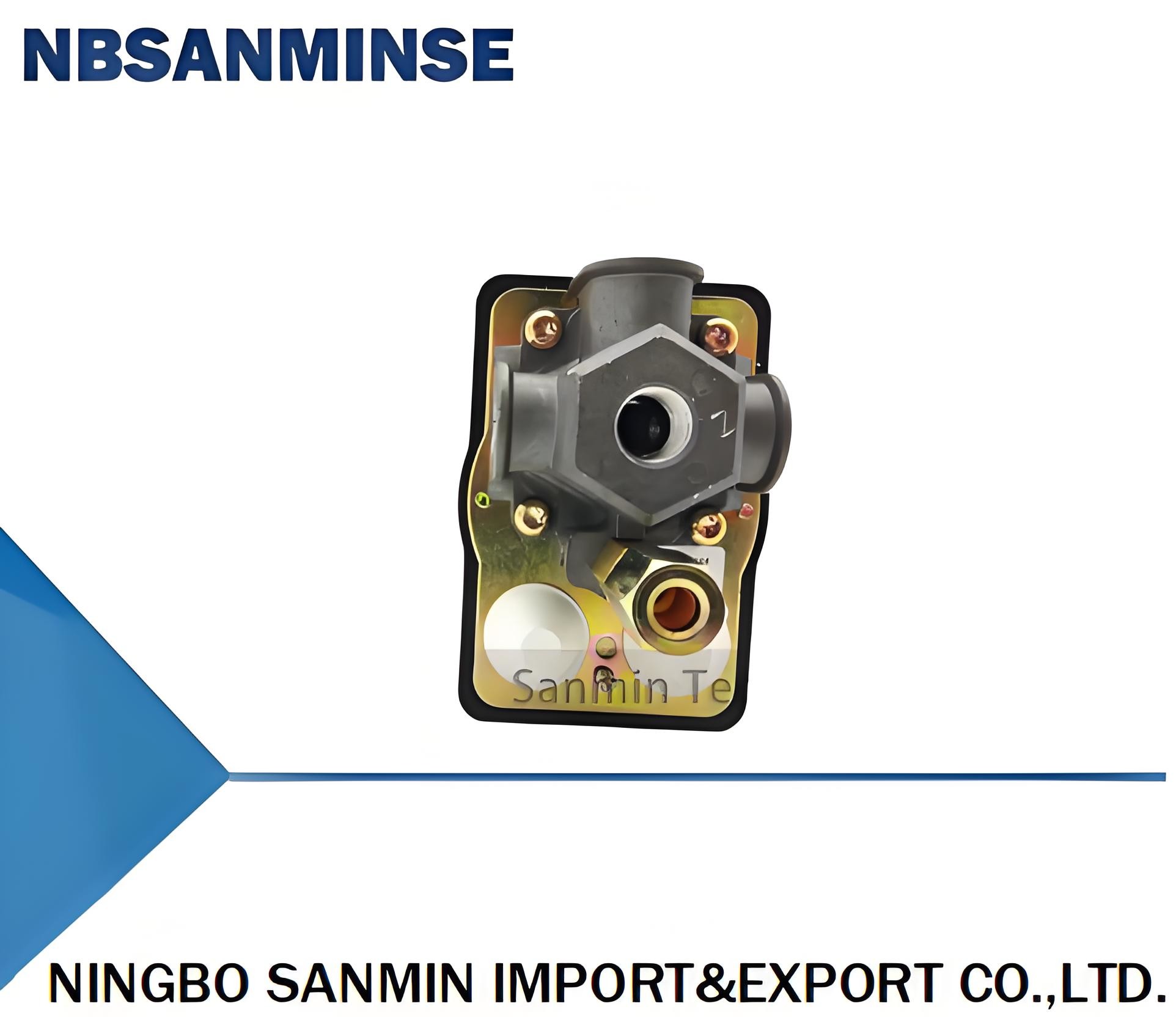

SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE
SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE
ติดต่อตอนนี้

SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE

สถานที่กำเนิด: จีน ชื่อแบรนด์: NBSANMINSE
หมายเลขรุ่น: SMF19

ข้อมูลรายละเอียด
รุ่น: SMF19 ขนาด: 1pc 2pcs 5pcs
ได้รับการรับรอง: ce ประเภทสวิตช์: สวิตช์ความดัน
วัสดุ: อลูมิเนียมอัลลอยด์ เกลียว: g npt

รายละเอียดสินค้า

Ex : ON :1Bar OFF:2Bar =NC

ON :2Bar OFF:1Bar =NO

ON :-0.9Bar OFF:-0.65Bar =NO

ON :-0.65Bar OFF:-0.9Bar =NC


ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference only
NBSANMINSE SMF 19 1/4 G NPT T Pressure Switch Reliable Control Switch High Quality For Air Compressor Pump

SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 0SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 1SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 2SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 3SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 4SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 5


G1-4 = G 1/4"
NPT1-4 = NPT 1/4"

SMF19 pressure switches provide time tested, reliable control for automatic water systems. The switch is universally acceptable for use as original equipment on water well pumps or pumping systems. It is available with an On-Off knob for manual cut off the pump.



SMF19 pressure switches can also be used to regulate the tank pressure between two preset values on onephase electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and it is available with an On-Off knob for manual cut off the compressor.




MODEL
Media
Unloader
Valve
Operating
Pressure Range(bar)
Factory Setting
(bar)
Differential
(bar)
Electrical Rating
Contact Arrangement
SMF19
Air
with
1-6
1-3
2-4
16A ,25/250VAC
NC
2-11
1.4-3.5
6-8
5-14
1.8-4.0
8-10

UL approved rating for SMF19 : Max Cut-Out 200 PSI, Min Cut-In 15 PSI, Differential 15-60 PSIApproval: UL, CUL, TUV, CE
26FLA, 156LRA, 120VAC/240VAC A600, N300
Other pipe fitting connection is available on request.
Conversion: 1 Bar = 14.5 PSI

SMF 19 Pressure Switch 1/4 G NPT T Reliable Control Switch High Quality For Air Compressor Pump NBSANMINSE 6
