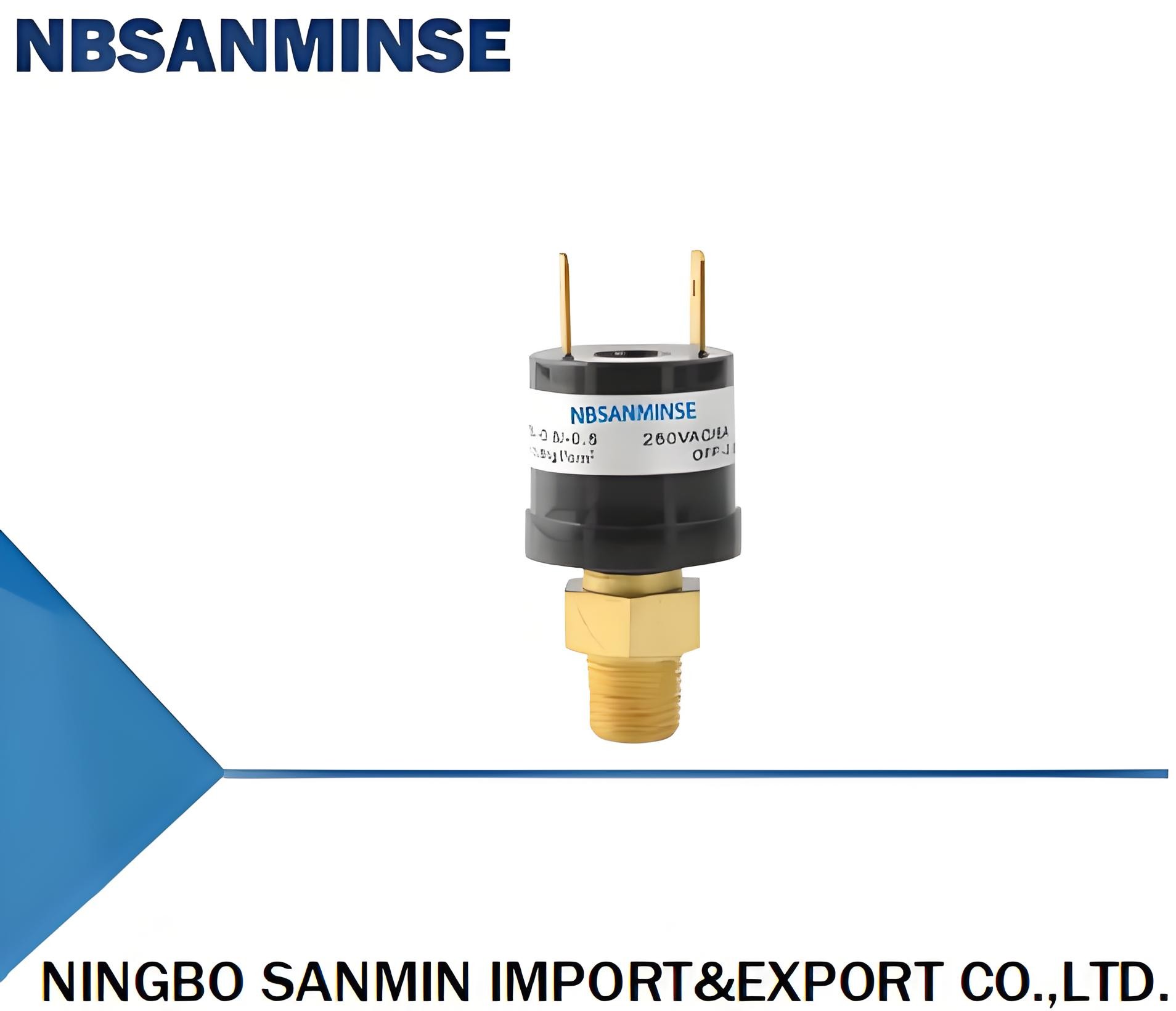

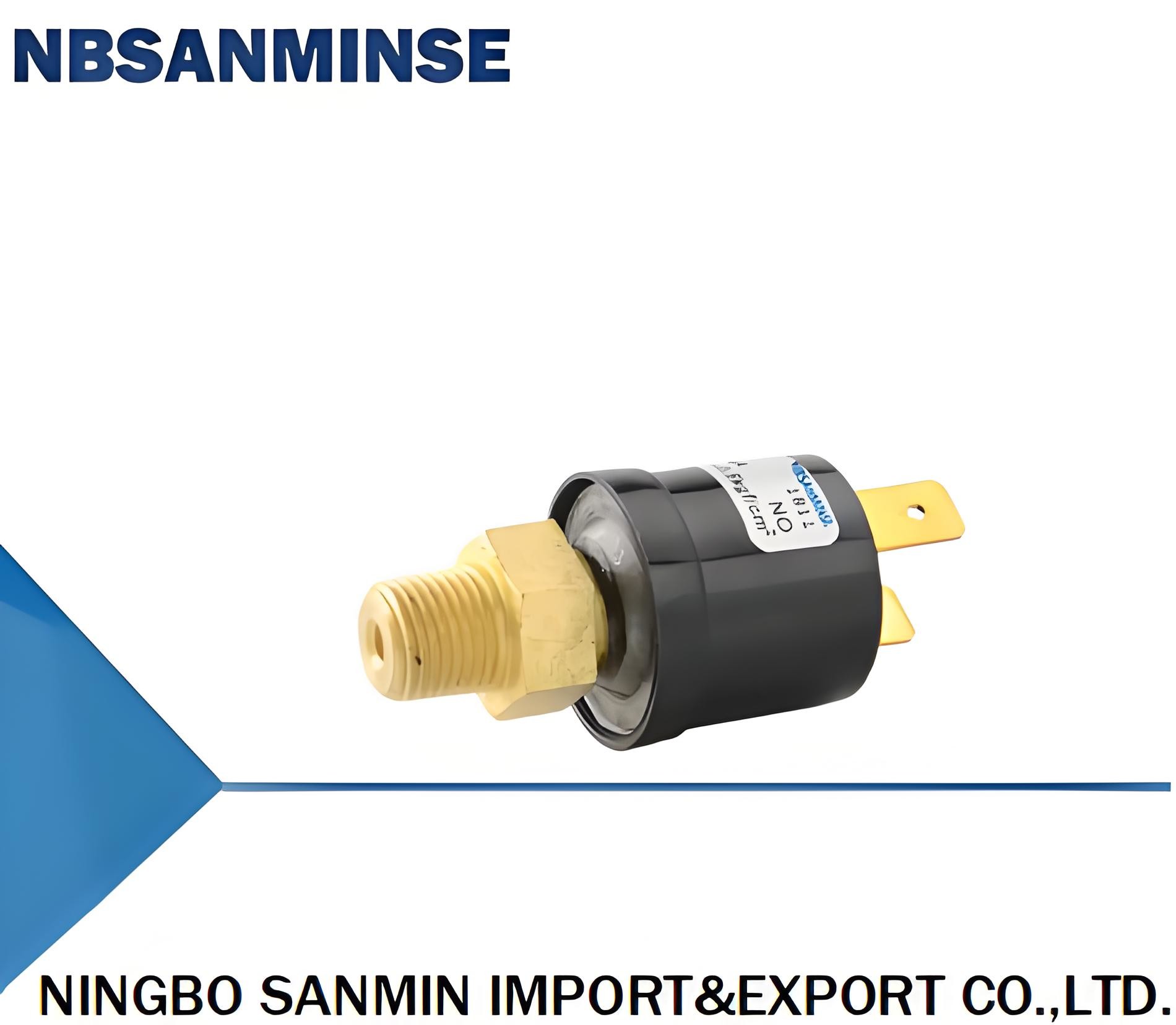

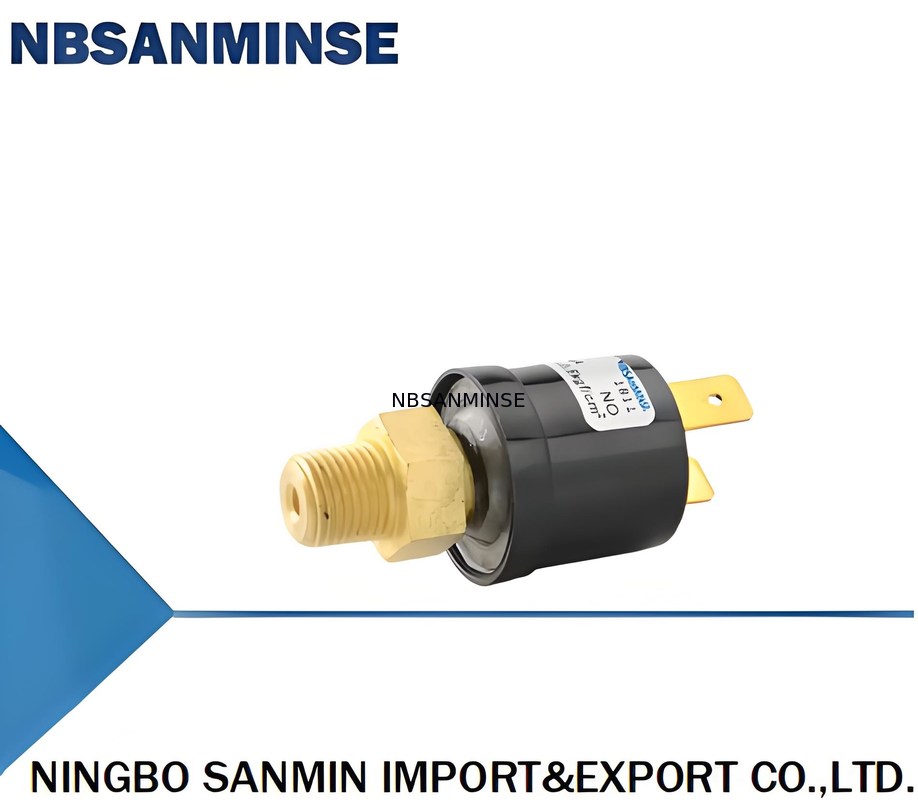

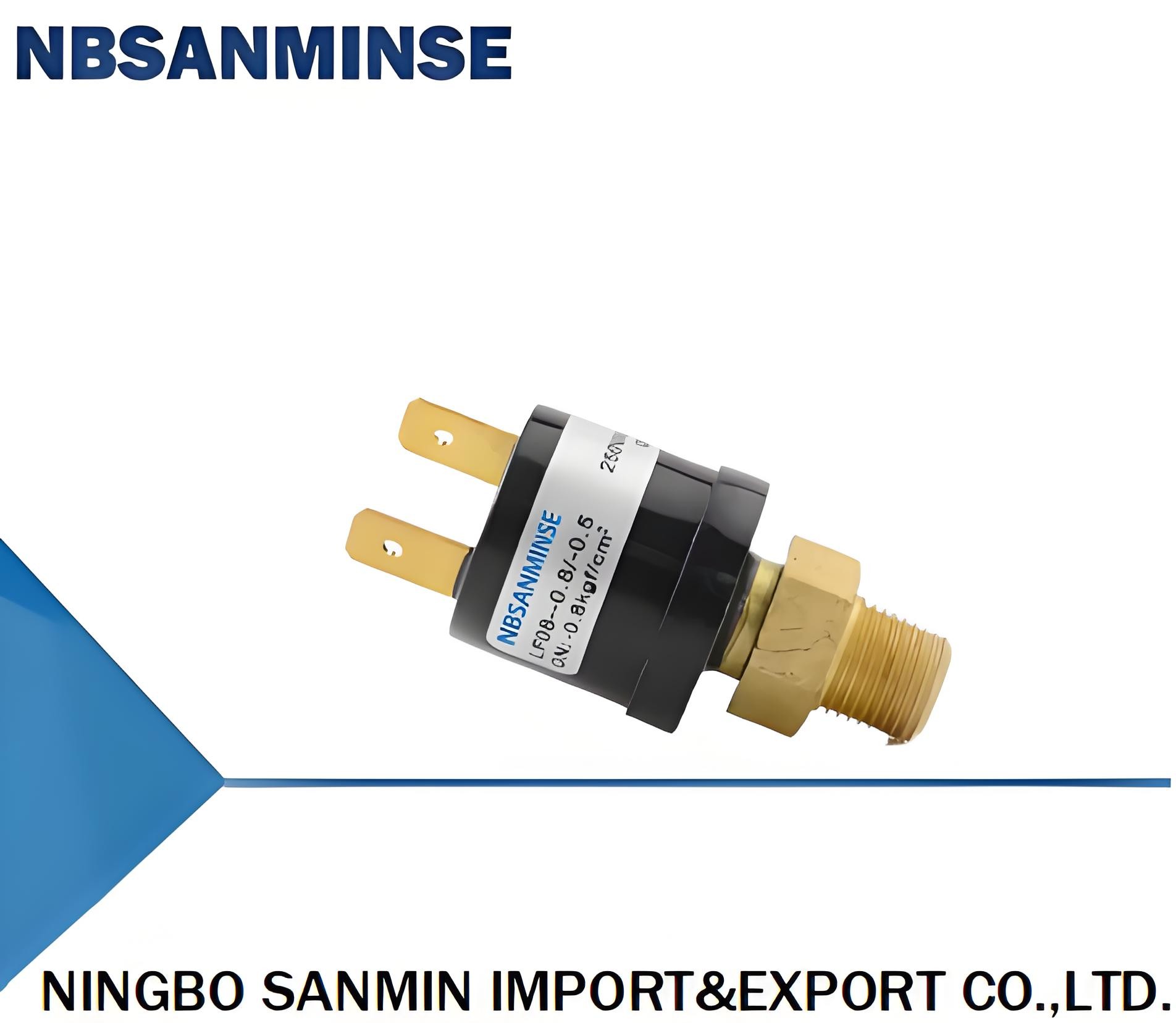

SMF08V Pressure Switch Designed Automatic Reset Small Vacuum Parts Used In Vacuum Environment

สถานที่กำเนิด:	จีน	ชื่อแบรนด์:	NBSANMINSE
หมายเลขรุ่น:	SMF08V

ข้อมูลรายละเอียด
รุ่น:	SMF08V	เกลียว:	6.35*0.8 NPT1/8 NPT1/4
วัสดุ:	สีเหลือง	ได้รับการรับรอง:	CE
ลักษณะ:	สวิตช์รีเซ็ตอัตโนมัติที่ออกแบบมา	อุณหภูมิสิ่งแวดล้อม:	-20 ~ 65 C

รายละเอียดสินค้า

Product sellpoints

•Switch Type: Pressure Switch,Precise pressure control with a pressure switch type, ideal for vacuum tank and refrigeration applications.

•Electrical Connections: 6.35 X 0.8 NPT,Standard 6.35 X 0.8 NPT electrical connections for easy installation and compatibility with various systems.

•Environment Temperature: -20 ~ 65 C,Operates reliably in a wide temperature range from -20 to 65°C, suitable for various climates.

•410a Low Presser Switch|How Do Vacuum Pump Work|Material: Brass,Crafted from durable brass, this switch withstands the rigors of vacuum environments.

•Features: Designed Automatic Reset Switch,Automatic reset design ensures consistent performance and easy recovery from pressure fluctuations.

Ex : ON :1Bar OFF:2Bar =NC

ON :2Bar OFF:1Bar =NO

ON :-0.9Bar OFF:-0.65Bar =NO

ON :-0.65Bar OFF:-0.9Bar =NC

ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference only

NC = Normally Closed

NO = Normally Open

Electrical Connections : 6.35 X 0.8

NPT1-8 = NPT 1/8"

NPT1-4 = NPT 1/4"

Normally is brass material,Normal close,if special request ,please memo for us during payment

SMF08-V vacuum switch is automatic reset pressure switch designed, there is deadband between close and open pressure setpiont. It can be used for vacuum pressure controlling for vacuum tank, refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.

Typical Applications:safety controls / air conditioning / refrigeration / vacuum tank pressure control/ braking system of automobile

Seires No.	SMF08-V
Medium	Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid
Pressure Set Point	-0.85 Bar to 1.5 Bar
Proof Pressure	10 Bar
Burst Pressure	100 Bar
Operating Temperature Range	-30° C to ~ 80° C
Switch Type	SPST- NC, SPST-NO
Electric Rating	120/240VAC, 3A 5~28VDC, 6A
Dielectric Strength	750 Vrms across open contacts 1550 Vrms terminals to fitting
Terminals	1/4” blade, wire lead
Life at Related Load	100,000 cycles
Connection	1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20 UNF, etc.
Options	various connector thread sizes; wire leads (potted & sealed); protective cover.
